C/E3606 -Outlaw Adjustable Ladder Bar (Pr)



Chassis Engineering introduces the first Triple Adjustable Ladder Bar. The Outlaw adds adjustment capabilities for the racer that needs every tuning advantage and extra strength for the heavy, high horsepower racecar. The Outlaw allows adjustment of the I.C. height, pinion angle, and overall leverage.  The housing brackets offer multiple adjustment holes to aid in lower bar angle and overall leverage.

  • Powder Coated Black

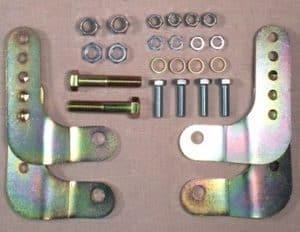

  • 1/4″ laser cut housing brackets 3″ Axle Hole is Standard
    • 3-1/4″ & 3-1/2″ Holes Available • Moly Available (make note in Comment section)
  • Bracket boxing strips
  • Jig welded 1-3/8″ chrome moly upper & lower bars
  • (4) 3/4″ Moly rod ends
  • (4) 3/4″ x 5/8″ Moly rod eyes
  • Moly tube adapters
  • 32″ from Face of Axle Tube to Center of the Front Rod End
    • (Typical Length of most Ladder Bars in the industry)
  • Nuts, Bolts and Instructions
